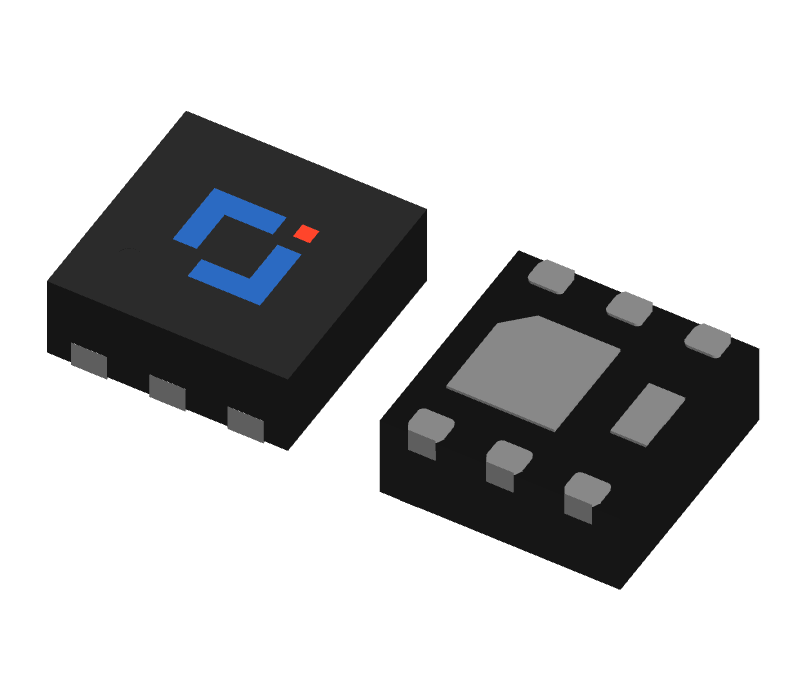

Pch -20V -8.6A, DFNWB2x2-6L, Trench MOSFET
| Part Number | Status | ESD Yes/No |
VDS V |
VGS V |
ID A |
VGS(TH) V |
RDS(mΩ)@VGS 10V Typ |
RDS(mΩ)@VGS 10V Max |
RDS(mΩ)@VGS 4.5V Typ |
RDS(mΩ)@VGS 4.5V Max |
Package |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CJMP2202 | Active | No | -20 | ±12 | -8.6 | -0.45~-1.0 | - | - | 14.5 | 22.0 | DFNWB2x2-6L |
| Part Number | Package Type | Component Weight(mg) | Marking | Packing Info | MSL |
|---|---|---|---|---|---|
| CJMP2202 | DFNWB2x2-6L | 10.1 | P2202 | Tape&Reel:3Kpcs/Reel | MSL1 |
